40kw Ultra High Frequency Induction Heating Machine with 400-1800A Output and 0.08-0.16Mpa Cooling for Electrical Test Set

40kw Ultra High Frequency Induction Heating Machine with 400-1800A Output and 0.08-0.16Mpa Cooling for Electrical Test Set

400-1800A Induction Heating Machine

0.08-0.16Mpa Electrical Test Set

50C High Frequency Induction Heater

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

YUYANG

प्रमाणन:

CE/CO

मॉडल संख्या:

YYS-40AB

हमसे संपर्क करें
एक उद्धरण की विनती करे
उत्पाद का विवरण
नमूना:
YYS-40AB(तीन चरण)
कार्य शक्ति:
340-430V
आगत बहाव:
65 ए
उतार -चढ़ाव की शक्ति:
10-50khz
आउटपुट करेंट:
400-1800A
ठंडा पानी की प्रवाह दर:
0.08-0.16एमपीए 9एल/मिनट
पानी का तापमान संरक्षण बिंदु:
50 सी
उत्पाद का आकार:
मुख्य:780*3708620मिमी; ट्रांसफार्मर:510*260*410मिमी
शुद्ध वजन:
मुख्य:54 किग्रा ; ट्रांसफार्मर: 32.5 किग्रा
प्रमुखता देना:

400-1800A Induction Heating Machine

,

0.08-0.16Mpa Electrical Test Set

,

50C High Frequency Induction Heater

भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा
1 सेट
मूल्य
1000~3000
पैकेजिंग विवरण
परतदार लकड़ी वाला बॉक्स
प्रसव के समय
6-10 कार्य दिवस
भुगतान शर्तें
, टी/टी
आपूर्ति की क्षमता
प्रति माह 20 सेट
उत्पाद का वर्णन

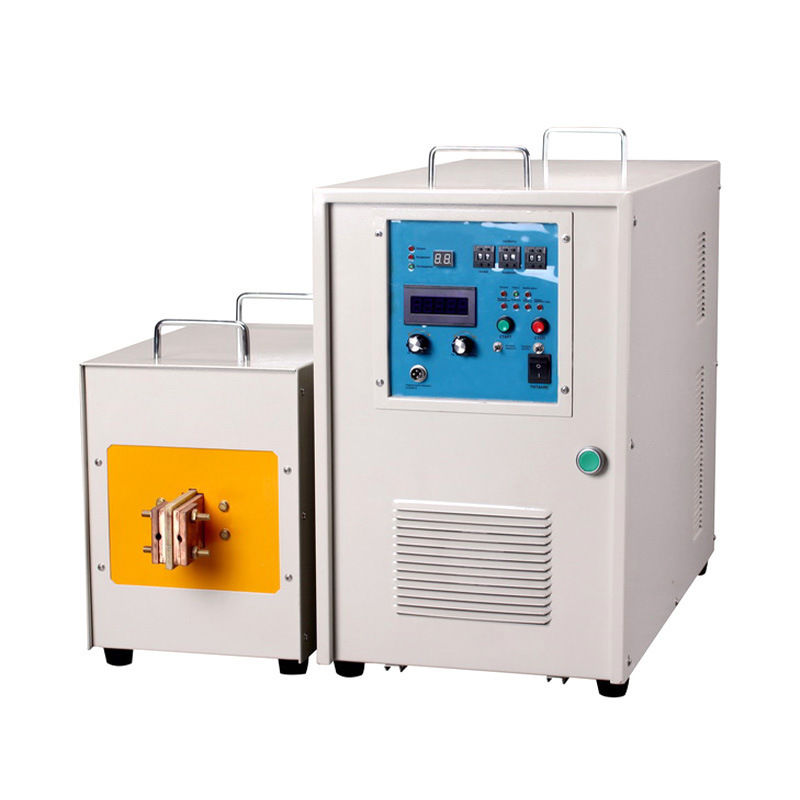

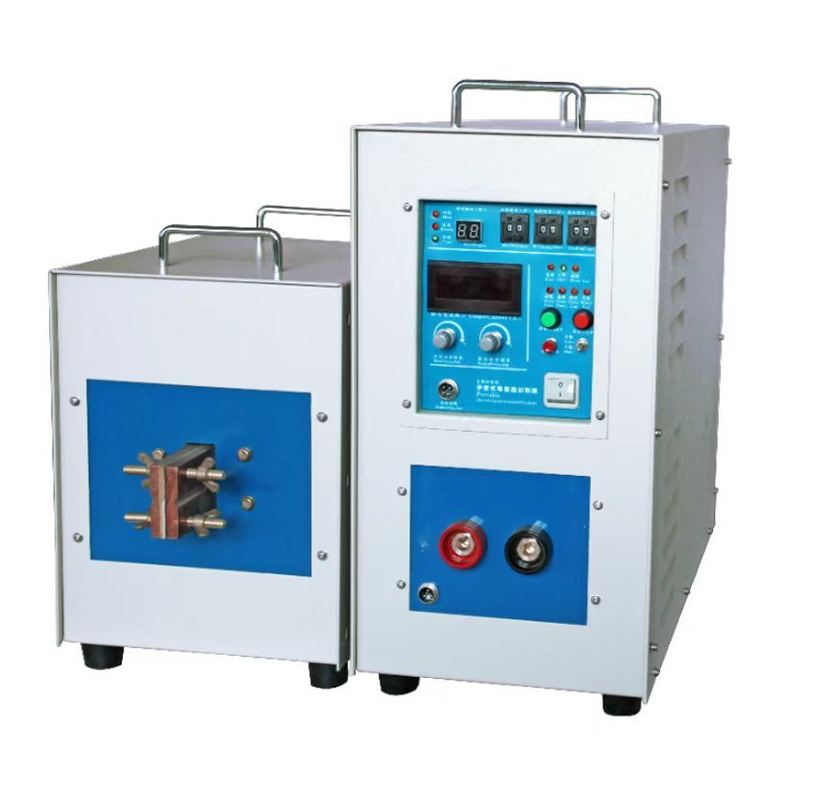

40kw Ultra High Frequency Induction Heating Machine Electrical Test Set
Integrating precise heating and electrical performance testing functions, it is specially designed for small and medium-sized metal workpieces, and is used to serve manufacturing, research and development, and quality inspection scenarios.
Technical Parameters
Parameter Value
Max Fluctuating Power 40KW
Fluctuating Frequency 10-50KHZ
Heating Current 400-1800A
Input Voltage (3Phase), 380V
The Flow Rate of Cooling Water 0.08-0.16Mpa, 9L/Min
Water Temperature Protecting Point 50°C
Product Features
  • Product line includes medium-frequency (15KVA~3000KVA) and high-frequency/ultra-high-frequency (3.2KVA~320KVA) equipment
  • Over 50 models available for various metal heating processes
  • Applications include quenching, surface heat treatment, annealing, welding, smelting, and more
Working Principle
  • Fully solid-state IGBT inverter module technology imported from Germany
  • Generates strong alternating magnetic field through induction coil
  • Eddy currents on workpiece surface enable rapid heating and instant temperature rise
Applications
  • Manufacturing: Surface hardening of gears/tooling, brazing of dissimilar metals, thermal assembly of micro-components
  • Quality Inspection: High-temperature testing of electrical terminals/motor windings
  • Research and Development: Thermal conductivity testing, small-scale melting of precious metals
