Product Overview

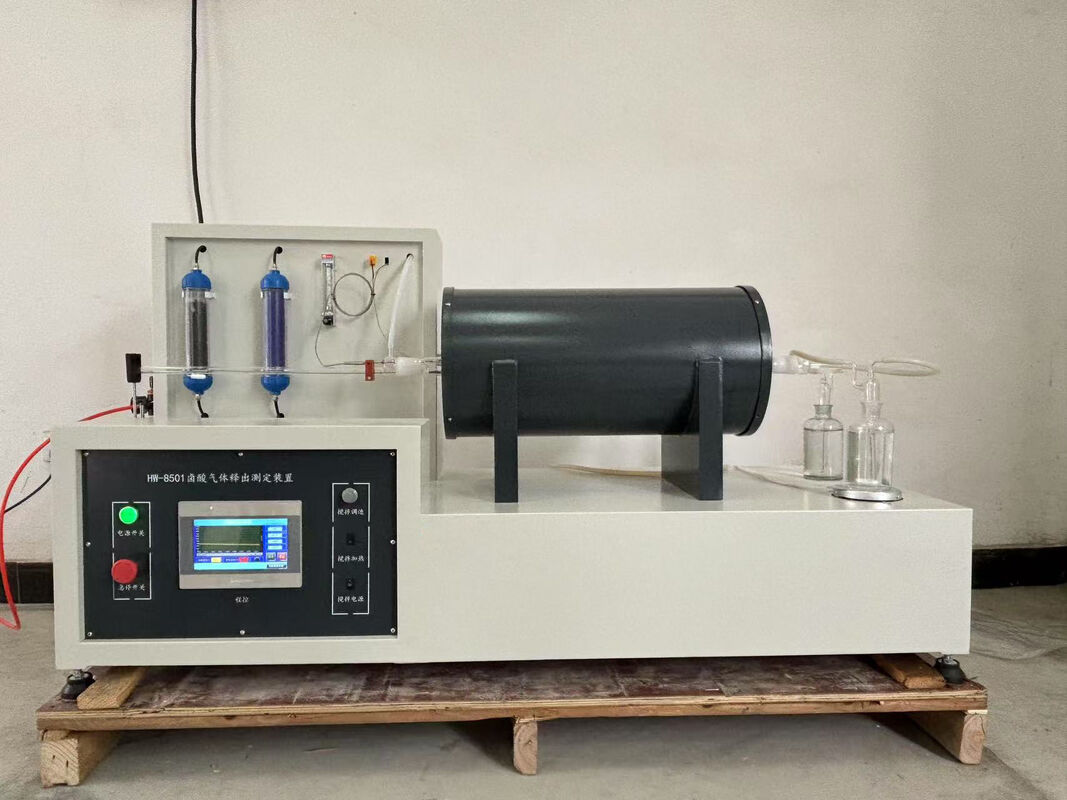

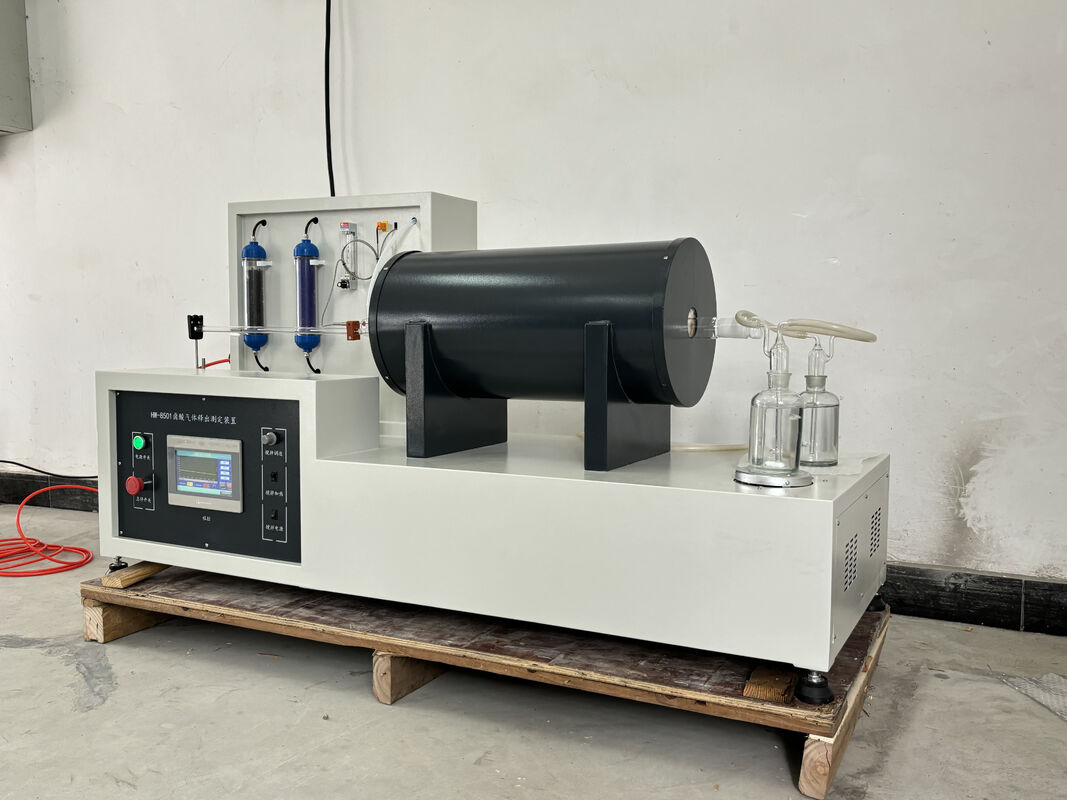

IEC 60754-1 Cable Halogen Acid Gas Release Test Machine is used to test the acidity of gas released during combustion from cable or optical cable components material. The equipment is designed and manufactured based on GB/T 17650 and IEC 60754 standards.
Introduction
The Halogen Acid Gas Tube Furnace processes cable material through a prius tube furnace, then measures the pH value and conductivity of gases generated during combustion. This determines the cable material's acidity, as well as concentration of halogen acid gas volume, pH, conductivity, and other parameters.
Compliance Standards
GB/T 17650.1~2-1998, IEC 60754-1/2-1994, EN 50305, BS 6853, GB/T 19666-2005, GA 306.2-2007, UL 2556-2007
Main Features
1, The tester designed with optimized structure, logical layout and easy to operate.
2, Al the fixtures are made of stainless steel.
3, The effective length of the tube-type fumace is 500-600mm, inner diameter is 40-60mm, with adjustable
electric systems.
4, Equipped with imported thermocouple from United States.
5, The size of the combustion boat is length 45~100mm, width 12~30mm, depth 5~10mm.
6, The electrical conductivity measuring range is 0.01uS/mm~100uS/mm.
7, The control system using an electronic temperature control, intelligent control tube fumace temperature.

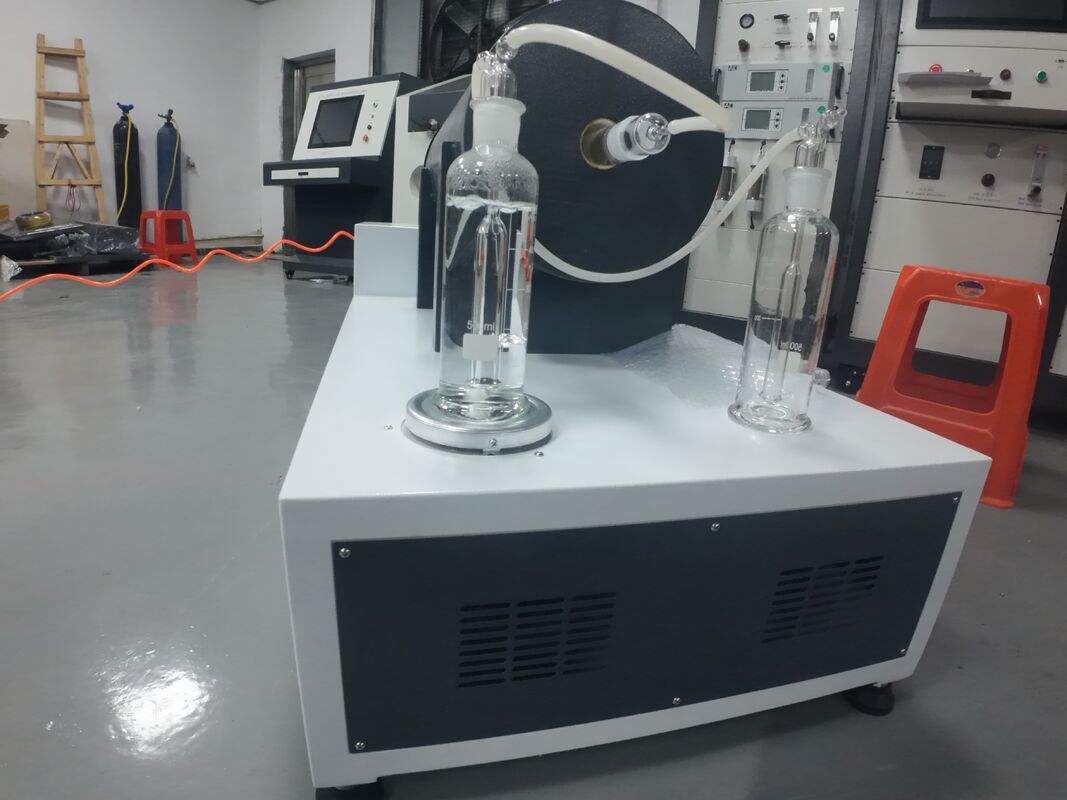

8, Equipped with two gas collection bottles.
9, The size of the sample chamber is 1 liter.
10, Equipped with a PH value and conductivity detector, with an electronic display and an electrode11, Air flow meter is equipped with silicon dioxide fire pipeline to prevent corrosion by the gas
12, Activated carbon (air filter): filter air through a filter.
13, The silicone is used for drying air source.
14, Pyrex pipeline: Users can easily insert sample into the Prius tube to protect the pipeline from damage15, Combustion boat moving system: combustion boat moves automatic to achieve more intelligent test16, The mode switching: mode switch (two test methods to choose from, lEC 60754-1 & IEC 60754-2)17, The temperature alarm system: control the fumace temperature against overheating
18, Timer: lEC 60754-1 0r lEC 60754-2 time measurement device.
19, Drawer:used to store parts of the box (such as conductivity meters, pH meter, etc.)20, Temperature indicator: shows the furnace core temperature.
21, Permanent magnetic stirrer: The agitator is used to stir the combustion gases in distilled water.
22, Conductivity meter:An instrument which used to measure the combustion gas conductivity.
| Parameter | Specification |
|---|---|
| Test Device Dimensions | 1500(W) × 450(D) × 400(H) mm |
| Control Chamber Dimensions | 400(W) × 400(D) × 240(H) mm |
| Power Supply | AC220V 50HZ, 25A |
| Weight | 80KG |
