Name: Industrial 1000L Programmable Constant Temperature and Humidity Testing Equipment 1 Year Warranty
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: Yye009
Price: 11957 USD
Availability: InStock

घर > उत्पादों > पर्यावरण परीक्षण के चैम्बर >

Industrial 1000L Programmable Constant Temperature and Humidity Testing Equipment 1 Year Warranty

1000L programmable environmental test chamber

constant temperature humidity testing equipment

industrial test chamber with warranty

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

YUYANG

प्रमाणन:

मॉडल संख्या:

Yye009

हमसे संपर्क करें

एक उद्धरण की विनती करे

Industrial 1000L Programmable Constant Temperature and Humidity Testing Equipment 1 Year Warranty

उत्पाद का विवरण

तापमान विचलन:

± 2 ℃

तापमान की रेंज:

-40ºC-+150ºC

आर्द्रता सीमा:

20% ~ 98% आरएच

सील:

1°C/मिनट (औसत शीतलन दर)

तापमान एकरूपता:

±2°C से कम या उसके बराबर

शक्ति:

380V

प्रमुखता देना:

1000L programmable environmental test chamber

constant temperature humidity testing equipment

industrial test chamber with warranty

भुगतान और शिपिंग की शर्तें

न्यूनतम आदेश मात्रा

1 टुकड़ा

मूल्य

negotiable

पैकेजिंग विवरण

लकड़ी का बक्सा

प्रसव के समय

7-30 दिन

भुगतान शर्तें

एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम

आपूर्ति की क्षमता

प्रति माह 5 पीसी

संबंधित उत्पाद

Salt Spray Cyclic Corrosion Test Chamber Test Equipment for Electronics

सबसे अच्छी कीमत पाएं

Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber

सबसे अच्छी कीमत पाएं

Laboratory Salt Spray Test Chamber for Corrosion Test Environmental Climate Test Chamber

सबसे अच्छी कीमत पाएं

वीडियो

परीक्षण उपकरण के लिए निरंतर तापमान और आर्द्रता के साथ परीक्षण कक्ष के लिए पर्यावरण जलवायु

सबसे अच्छी कीमत पाएं

हमसे संपर्क करें

अब संपर्क करें

उत्पाद का वर्णन

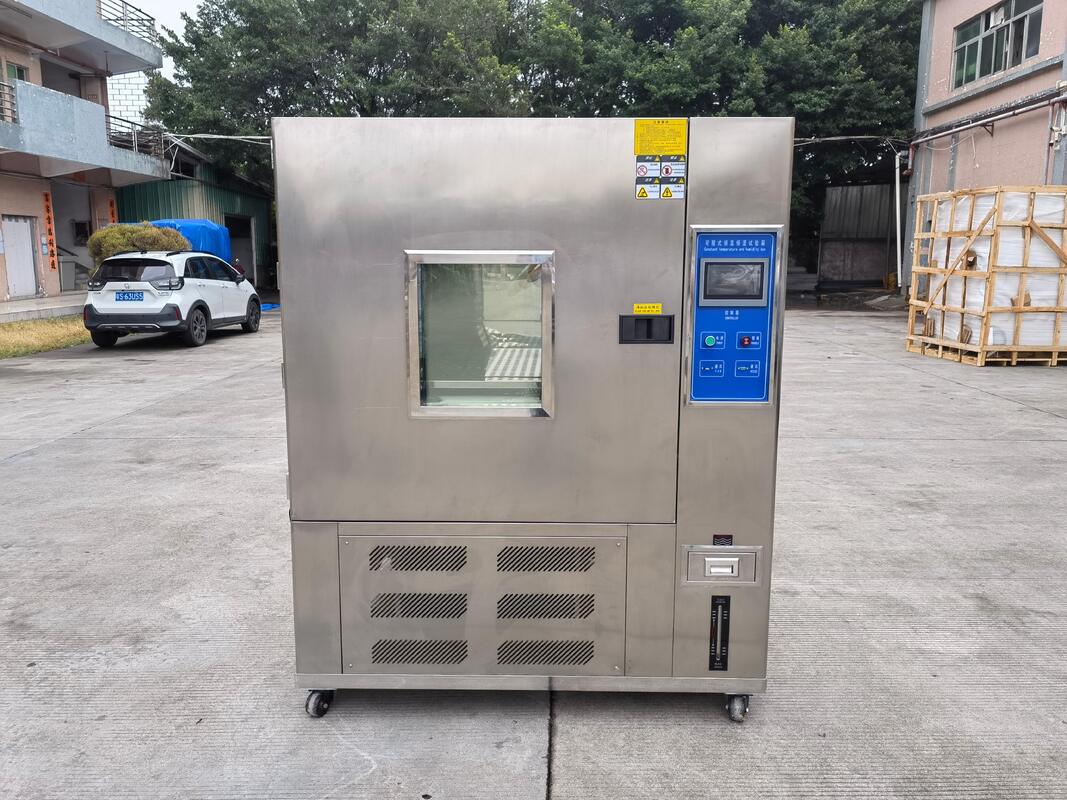

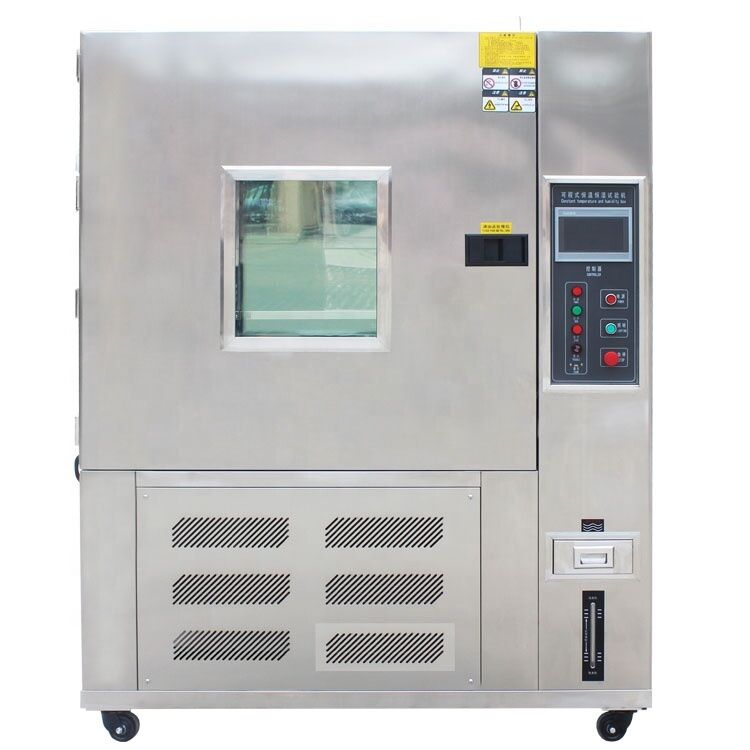

Industrial 1000L Programmable Constant Temperature and Humidity Testing Equipment

Professional testing equipment with 1-year warranty for industrial applications requiring precise environmental simulation.

Structural Features

Insulation Envelope

Outer wall material: High quality sand surface stainless steel plate
Inner wall material: High quality mirror surface stainless steel plate
Sealing strip withstands temperature range: -100℃ to +300℃ with 10-year life expectancy
Box insulation material: Rigid polyurethane foam + Glass fibre

Air-conditioning Channel

Multi-wing centrifugal circulation fan with reinforced axis
High and low temperature resistant rotating blades made of aluminium alloy
FLOW THROW air supply mode with horizontal diffusion vertical heat exchange arc circulation
Adjustable side-blowing air outlets and guarded return air outlets

Standard Configuration

Observation window: Transparent electric heating film hollow tempered glass
Lead hole: φ50mm (located in left side of box)
Indoor lighting with high efficiency energy-saving lamps
Mobile casters: 4 units
Stainless steel sample rack: 1 layer with 4 hooks
Load capacity: 25kg per layer (maximum total load: 100kg)

Additional Components

Single-opening hinged door with observation window and anti-condensation electric heating device
Control panel with controller display, power switch and status indicators
Mechanical room housing refrigeration unit, catch pan, drain hole, condensing fan, and charge water tank
Electrical distribution control cabinet with comprehensive electrical components
Nickel-chromium alloy electric wire type heater (12KW power)
External removable boiler humidification system (2.5KW power)
50L replenishment water tank with high/low water level indication

Product Overview

This constant temperature and humidity testing machine utilizes Balance Temperature and Humidity Control System (BTHC) with P.I.D. controlled SSR for stable long-term operation. It simulates various environmental conditions including high temperature/high humidity, high temperature/low humidity, low temperature/high humidity, and low temperature/low humidity environments.

Widely used in aerospace, military, electronics, electrical appliances, petroleum, chemical industry, coatings, plastics, telecommunications, medical/pharmaceutical, universities, and research institutions for product temperature, humidity, and environmental reliability testing.

Specimen Limitations

This test equipment is prohibited for:

Testing or storage of flammable, explosive, or volatile substances
Testing or storage of corrosive substances
Testing or storage of biological specimens
Testing or storage of specimens with strong electromagnetic emission sources
Testing or storage of radioactive substances
Testing or storage of highly toxic substances
Testing or storage of specimens that may generate hazardous substances during testing

Capacity, Dimensions and Weight

Specification	Value
Nominal inner volume	1000L
Inner chamber dimensions	W1000mm × D1000mm × H1000mm
External dimensions (approx.)	W1520mm × D1550mm × H1870mm
Power requirement	380V

Performance Specifications

Parameter	Specification
Test Environmental Condition	Environment temperature: +5~+28℃, Relative humidity ≤85%
Testing Method	GB/T 5170.2-2008 Temperature test equipment GB/T 5170.5-2008 Damp heat test equipment
Temperature Range	-40℃ to +150℃
Humidity Range	20% to 98% RH (25 to 85℃ humidity capable)
Temperature Fluctuation	≤0.5℃
Temperature Deviation	±2℃
Temperature Uniformity	≤±2℃
Heating Rate	3℃/min (average)
Cooling Rate	1℃/min (average)
Relative Humidity Deviation	±2.0% RH (humid-heat type only)

Installation Clearance Requirements: A: not less than 60cm, B: not less than 120cm, C: not less than 60cm, D: not less than 120cm

Environmental Requirements

Temperature: 5℃ to 35℃
Relative humidity: ≤85%
Air pressure: 86kPa to 106kPa
